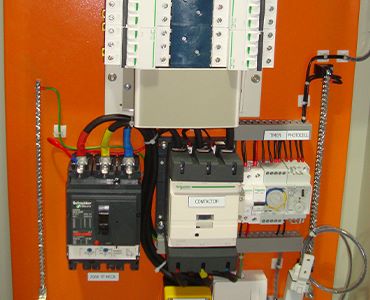

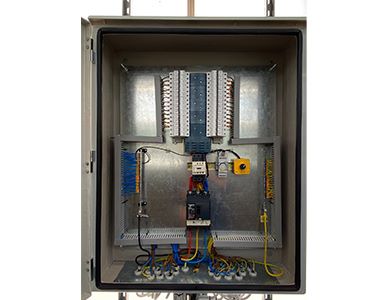

SOURCE CHANGE OVER SYSTEM (MANUAL/AUTOMATIC) & SYNCHRONIZING PANELS

  • Home
  • Product
  • Source Change Over System & Synchronizing Panels

TECHNICAL DATA

  • Source 1 and 2 :-

    • o ACB 4P 630 to 2500 Amps up to 65kA drawout or fixed pattern or motorized.
    o MCCB 4pol 40 to 1250 amps up to 50k fixed or plug in pattern or motorized.
    o Contactors of choice TP / 4P.


  • Electrical and mechanical interlocking between source 1 and 2.


  • Control functions available for engine monitoring, warm-up and cool down periods, emergency shutdowns, multi attempt engine start control, engine test runs.


  • Busbars:-

    • H.C.H.D. copper, electrolytically tinned and color coded.


  • Enclosure :-

    • Electrogalvanized sheet 2 mm, polyester powder coated. Standard size of enclosure according to the ATS rating.


  • Cablingb :-

    • Removable gland plate on top and bottom.
